This DIY Simple Sensitive Metal Detector using an Arduino Nano can be found on the Arduino Project Hub. When I first encountered it, some aspects of the build were a little vague. To get over a few problems, I investigated the design and have introduced a few updates based around readily available components. These are included in the full circuit diagram and parts list shown here. Upon building this project, I did run into a slight issue with it launching the self calibration code before the circuit voltages had stabilised. This is now fixed by adding a short delay and the updated code is included here.
The metal detector is a pulse induction type, its operating principles are well covered in other articles and can be easily found on the web. Full credit to Mirko Pavleski for this interesting project.

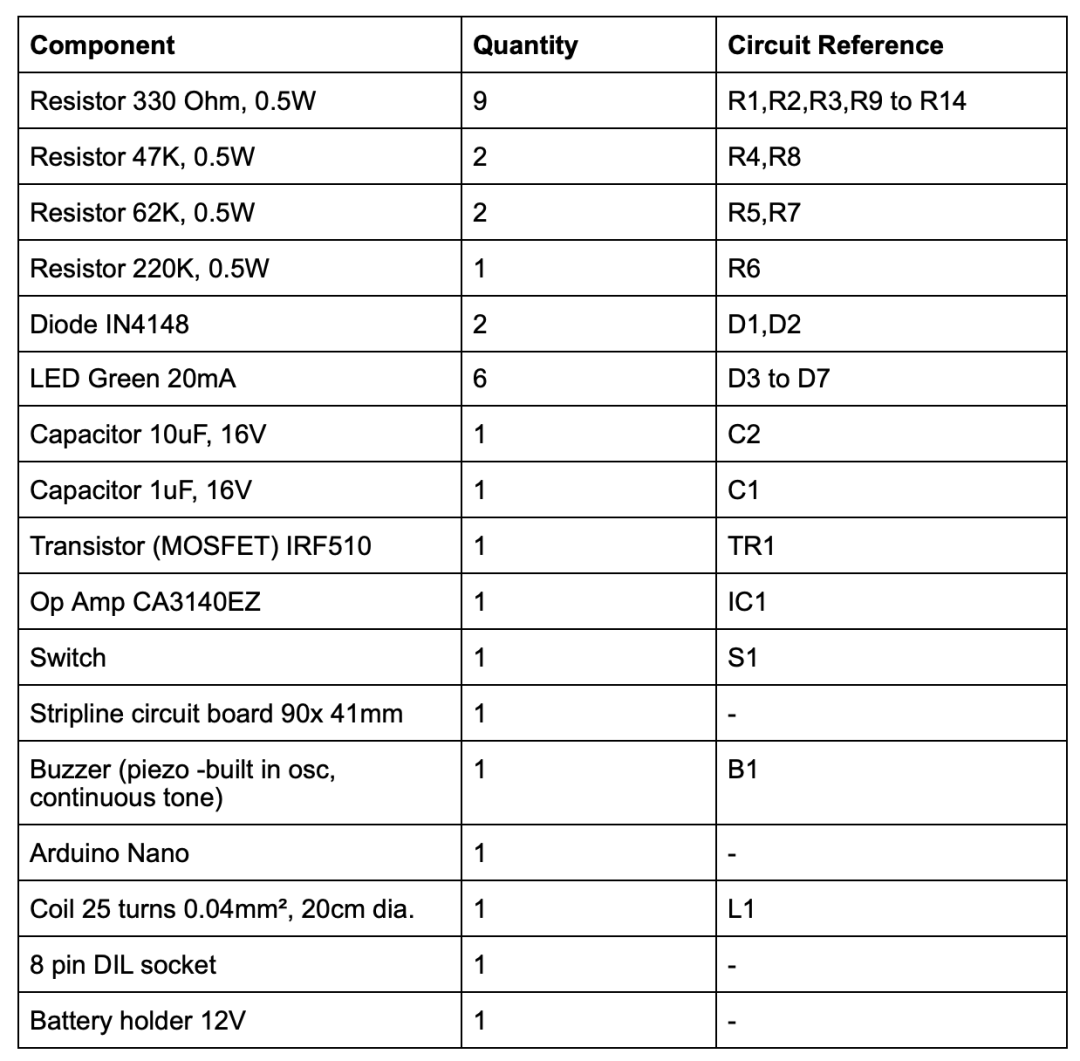

Parts list
The circuit diagram
The code for our metal detector
// PI metal detector for arduino version_18_min (C) alex — 1967 201
int ss0 = 0;
int ss1 = 0;
int ss2 = 0;
long c0 = 0;
long c1 = 0;
long c2 = 0;
byte i = 0;
int sss0 = 0;
int sss1 = 0;
int sss2 = 0;
int s0 = 0;
int s1 = 0;
int s2 = 0;
void setup ()
{
DDRB = 0xFF; // port B – all out
DDRD = 0xFF; // port D – all out
delay (1000); //pause for Volts) to stabilise before calibration
for (i = 0; i <255; i ++) // calibration / calibration
{
PORTB = B11111111; // Sets port B pins to 1 and turns ON transistor.
delayMicroseconds (200); // wait 200 microseconds
PORTB = 0; // Turns OFF transistor
delayMicroseconds (20);
s0 = analogRead (A0);
s1 = analogRead (A0);
s2 = analogRead (A0);
c0 = c0 + s0;
c1 = c1 + s1;
c2 = c2 + s2;
delay (3);
}
c0 = c0 / 255;
c0 = c0 – 5;
c1 = c1 / 255;
c1 = c1 – 5;
c2 = c2 / 255;
c2 = c2 – 5;
}
void loop ()
{
PORTB = B11111111; // Sets port B pins to 1 and turns ON transistor.
delayMicroseconds (200); // wait 200 microseconds
PORTB = 0; // Turns OFF transistor.
delayMicroseconds (20);
s0 = analogRead (A0);
s1 = analogRead (A0);
s2 = analogRead (A0);
ss0 = s0 – c0;
if (ss0 <0)
{
sss0 = 1;
}
ss0 = ss0 / 16;
PORTD = ss0; // send to the indicator (send to LEDs)
delay (1);
ss1 = s1 – c1;
if (ss1 <0)
{
sss1 = 1;
}
ss1 = ss1 / 16;
PORTD = ss1; // send to the indicator (send to LEDs)
delay (1);
ss2 = s2 – c2;
if (ss2 <0)
{
sss2 = 1;
}
ss2 = ss2 / 16;
PORTD = ss2; // send to the indicator (send to LEDs)
delay (1);
if (sss0 + sss1 + sss2> 2)
{
digitalWrite (7, HIGH);
digitalWrite (6, HIGH);
digitalWrite (5, HIGH);
digitalWrite (4, HIGH);
digitalWrite (3, HIGH);
digitalWrite (2, HIGH);
digitalWrite (1, HIGH);
digitalWrite (0, HIGH);
delay (1);
sss0 = 0;
sss1 = 0;
sss2 = 0;
}
}
I can see you dropped the transistor network. I thought it would not be necessary as the mosfet would can be turned on by the arduino alone.
Any reason for this choice of opamp? i have TL871`s
Hi,
The MOSFET is ideal in this application as it is voltage driven and easily controlled by the logic (high/ low) output voltage from the Arduino Nano. Most general purpose op amps that are powered from a single rail supply like the TL071 should be ok.
Let us know if you have any more questions and we’d be delighted to try and help!
Claire
Thanks for your reply. Did you measure the inductance of the coil? Did you work out the target resonant frequency? I have a premade 55 turn 15cm diameter coil at 670uH and was wondering if I could repurpose that.
Looks like the schematic has the polarised cap the wrong way.
Thanks for your comment – I can confirm that the capacitors are definitely correctly aligned and the design has been successfully replicated by other users. Good luck in building your metal detector!
